Выделить:
Тип машины: |
гранулятор |
Емкость: |
требуется клиентами |
Опционный прибор: |
Устройство микропитания |
поставщик: |
китайская фабрика |
Система управления: |
ПЛК |
Тип кормления: |
горизонтальный тип подачи |
Функции: |
без воды и растворителей |
Гарантия: |
Один год |
Материал: |
SS304, 316L |
Основная точка продажи: |
ПЛК известного бренда |
Применимая промышленность: |
фармацевтическая, химическая, пищевая промышленность |
Преимущества: |
строгие требования к процессу |
Упаковка: |
деревянный случай или деревянный паллет |
Collagen Roller Compactor Protein Dry Granulator In Food Industry
Collagen Roller Compactor Protein Dry Granulator In Food Industry

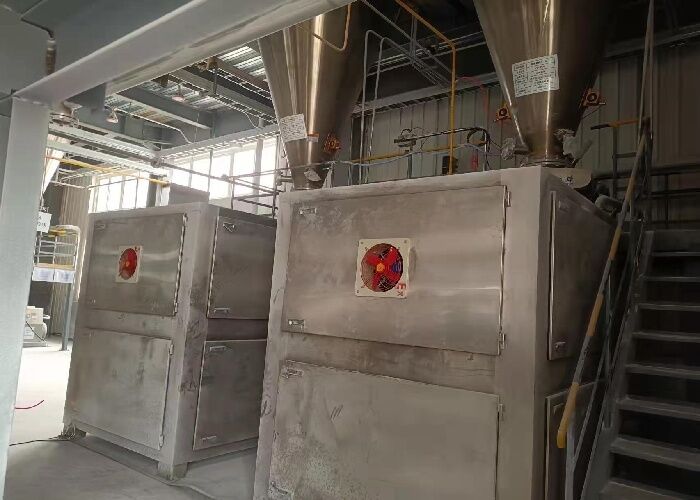

Roller Compactor is also called Dry Granulator.
The dry granulation machine directly converts powder materials into particles through physical extrusion, crushing, and granulation processes. During the granulation process, no liquid adhesive is added, and the output particles do not need to be dried. They can be directly used for the next step of packaging, tablet pressing, or capsule filling.
The dry granulator also can work together with pharma bin, Pneumatic Conveyor and Vibrating Sieve, and forms a sealed automatic dry granulation process line as the following flow chart:
| Model |
LG100 |
LG100E |
LG160 |
LG200 |
LG240 |
LG360 |
|
Capacity
(kg/h)
|
1.5-15 |
12-40 |
50-150 |
100-240 |
160-320 |
360-720 |
|
Rated power
(kw)
|
3.47 |
3.53 |
7.24 |
11.37 |
15.94 |
32.55 |
| Roller size (D*W) |
100*25 |
100*40 |
160*50 |
200*75 |
240*100 |
360*150 |
For large production scale application, we provide double-supporting roller model
| Model |
LGS200 |
LGS240 |
LGS360 |
LGS500 |
|
Capacity
(kg/h)
|
200-400 |
300-640 |
1200-2000 |
1500-3000 |
|
Rated power
(kw)
|
|
|
|
|
| Roller size (D*W) |
|
|
|
|
Roller Compactor For Dry Granulation has the following features:
• In compliance with cGMP guidelines
• Contact parts are made of S.S 304 or S.S. 316 except rollers
• All covers are designed to obtain dust-free operation
• Feed screw is steplessly driven through variable frequency drive.
• Hard chome plated & mirror finished compacting rolls made of tools steel
• Pre-compaction chamber guides the product to rolls without any slippage or leakage.
• Electrical interlocking between main roll drive and feed screw drive
• Water Jacketing arrangement
• Hydraulic Power Pack system
• Inverter for rolls and milling device
• PLC system as per 21 CFR part 11 (optional)
Application of Roller compactor:
Dry Granulator is widely used in pharmaceutical industry, nutriceutical industry, food industry and chemical industry.
Pharmaceutical industry: Chinese medicine, western drugs, amoxicillin, cefalexin, etc.
Nutriceutical industry: Probiotics, lyophilized royal jelly powder, etc.
Food industry: Fruit powder, collagen powder, tea powder, etc.
Chemical industry: Magnesium oxide, antioxidants, pyrazole, etc.
Why Choose Us:
We are a leading Chinese manufacturer specializing in dry granulation equipment. With extensive experience in custom engineering solutions, we ensure that each machine meets your unique production requirements, improving efficiency and product quality.
Call-to-Action:
Contact us today to discuss your production needs and get a customized dry granulation solution!
